将FatFS移植到NorFlash

访客技术 2026年10月11日 1

将FatFS文件系统移植到NorFlash

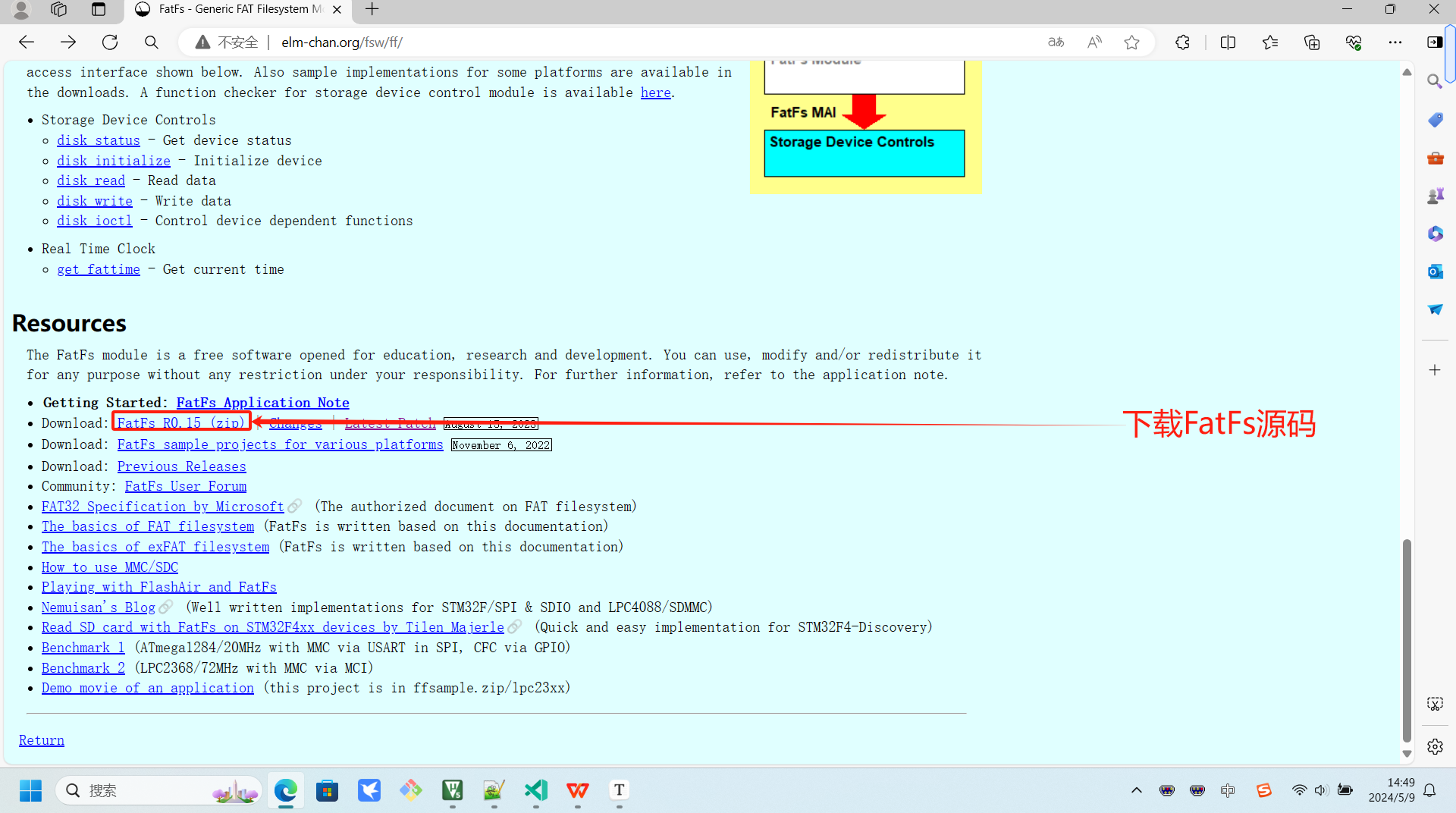

1. 下载源码

源码链接：FatFs - 通用FAT文件系统模块 (elm-chan.org)

2. 在Keil工程中创建FatFs文件夹

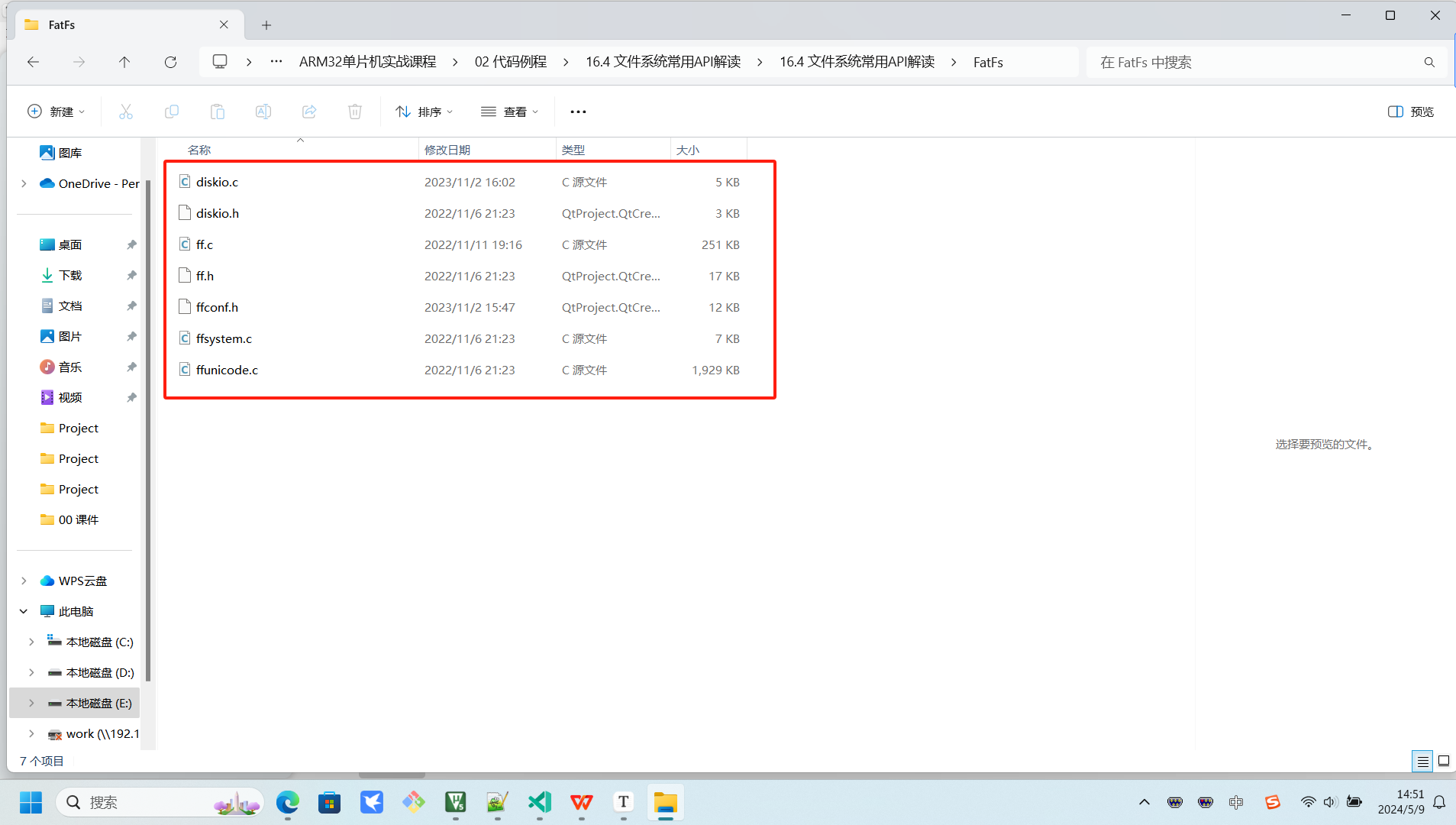

2.1 将下载的源码复制到FatFs文件夹

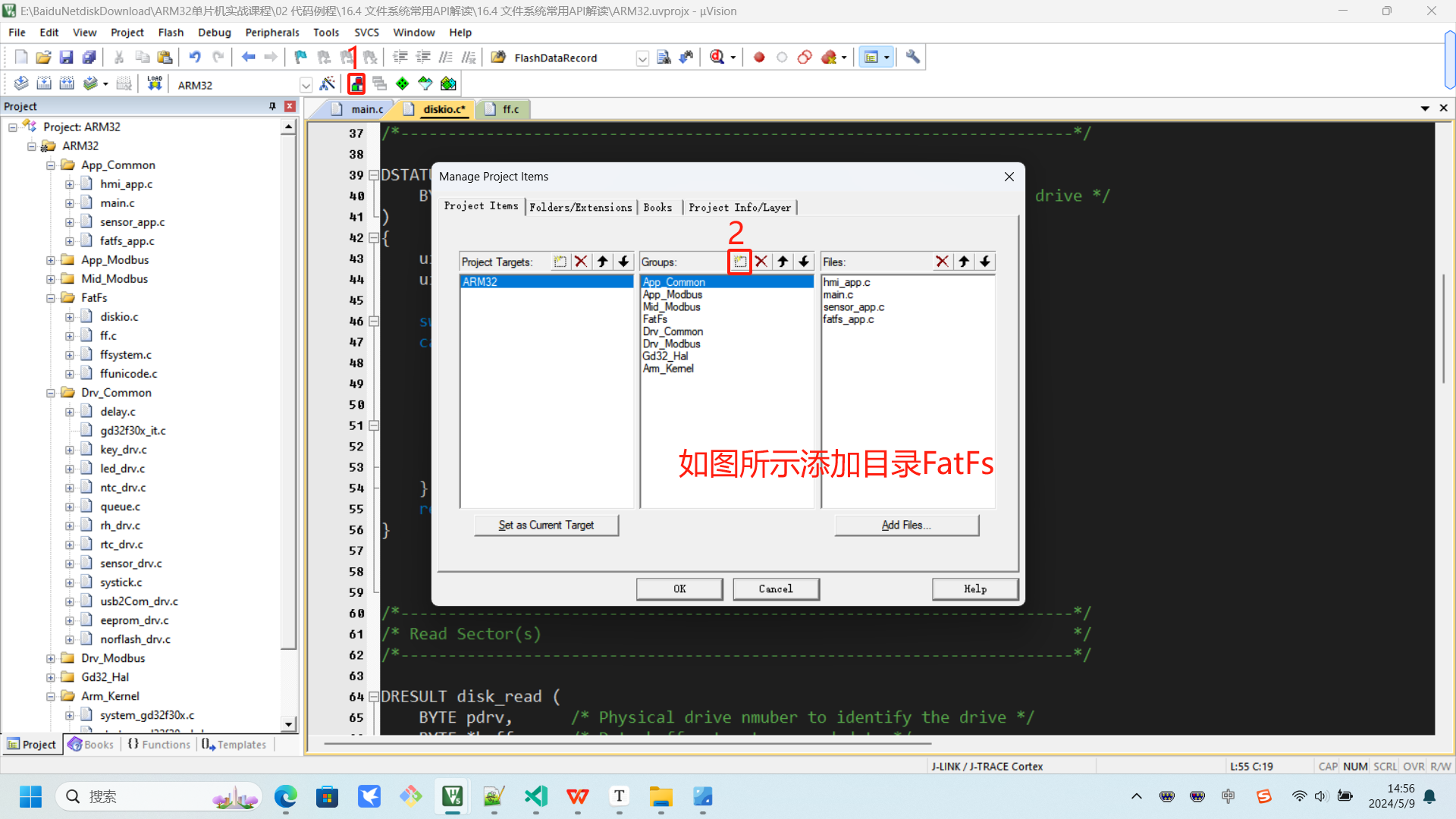

2.2 在Keil中添加FatFs

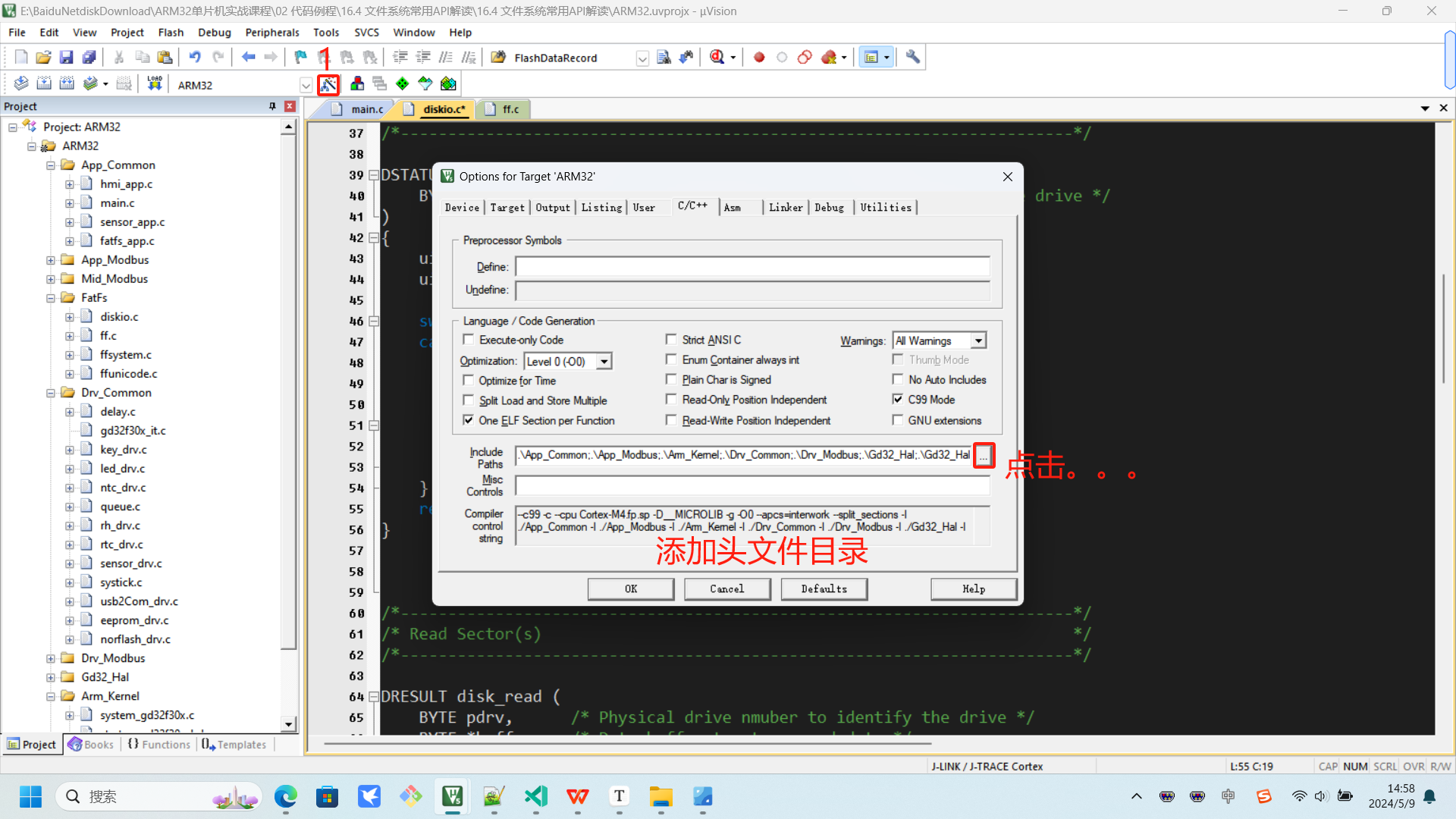

添加目录
点击Add files添加文件

3. 修改diskio.c

原始文件如下

/*-----------------------------------------------------------------------*/
/* Low level disk I/O module SKELETON for FatFs     (C)ChaN, 2019        */
/*-----------------------------------------------------------------------*/

#include "ff.h"			/* Obtains integer types */
#include "diskio.h"		/* Declarations of disk functions */

#define DEV_RAM		0	/* Example: Map Ramdisk to physical drive 0 */
#define DEV_MMC		1	/* Example: Map MMC/SD card to physical drive 1 */
#define DEV_USB		2	/* Example: Map USB MSD to physical drive 2 */

DSTATUS disk_status(BYTE pdrv) {
	DSTATUS stat;
	int result;

	switch (pdrv) {
	case DEV_RAM:
		result = RAM_disk_status();
		return stat;
	case DEV_MMC:
		result = MMC_disk_status();
		return stat;
	case DEV_USB:
		result = USB_disk_status();
		return stat;
	}
	return STA_NOINIT;
}

DSTATUS disk_initialize(BYTE pdrv) {
	DSTATUS stat;
	int result;

	switch (pdrv) {
	case DEV_RAM:
		result = RAM_disk_initialize();
		return stat;
	case DEV_MMC:
		result = MMC_disk_initialize();
		return stat;
	case DEV_USB:
		result = USB_disk_initialize();
		return stat;
	}
	return STA_NOINIT;
}

DRESULT disk_read(BYTE pdrv, BYTE *buff, LBA_t sector, UINT count) {
	DRESULT res;
	int result;

	switch (pdrv) {
	case DEV_RAM:
		result = RAM_disk_read(buff, sector, count);
		return res;
	case DEV_MMC:
		result = MMC_disk_read(buff, sector, count);
		return res;
	case DEV_USB:
		result = USB_disk_read(buff, sector, count);
		return res;
	}
	return RES_PARERR;
}

#if FF_FS_READONLY == 0
DRESULT disk_write(BYTE pdrv, const BYTE *buff, LBA_t sector, UINT count) {
	DRESULT res;
	int result;

	switch (pdrv) {
	case DEV_RAM:
		result = RAM_disk_write(buff, sector, count);
		return res;
	case DEV_MMC:
		result = MMC_disk_write(buff, sector, count);
		return res;
	case DEV_USB:
		result = USB_disk_write(buff, sector, count);
		return res;
	}
	return RES_PARERR;
}
#endif

DRESULT disk_ioctl(BYTE pdrv, BYTE cmd, void *buff) {
	DRESULT res;
	int result;

	switch (pdrv) {
	case DEV_RAM:
		return res;
	case DEV_MMC:
		return res;
	case DEV_USB:
		return res;
	}
	return RES_PARERR;
}

修改程序
增加头文件#include <stdint.h>
修改磁盘：DEV_RAM 改为 DEV_NORFLASH
修改状态：disk_status
修改读：disk_read
修改写：disk_write
修改磁盘信息：disk_ioctl
修改获取时间：get_fattime

/*-----------------------------------------------------------------------*/
/* Low level disk I/O module SKELETON for FatFs     (C)ChaN, 2019        */
/*-----------------------------------------------------------------------*/

#include <stdint.h>
#include "ff.h"			/* Obtains integer types */
#include "diskio.h"		/* Declarations of disk functions */
#include "norflash_drv.h"
#include "rtc_drv.h"

#define DEV_NORFLASH	0	/* Example: Map NorFlash to physical drive 0 */
#define DEV_MMC		1	/* Example: Map MMC/SD card to physical drive 1 */
#define DEV_USB		2	/* Example: Map USB MSD to physical drive 2 */

DSTATUS disk_status(BYTE pdrv) {
	return RES_OK;
}

DSTATUS disk_initialize(BYTE pdrv) {
	uint8_t mid = 0;
	uint16_t did = 0;

	switch (pdrv) {
	case DEV_NORFLASH:
		NorflashDrvInit();
		ReadNorflashID(&mid, &did);
		if (((uint32_t)mid << 16 | did) == NORFLASH_ID) {
			return RES_OK;
		}
	}
	return RES_NOTRDY;
}

DRESULT disk_read(BYTE pdrv, BYTE *buff, LBA_t sector, UINT count) {
	switch (pdrv) {
	case DEV_NORFLASH:
		ReadNorflashData(sector * NORFLASH_SECTOR_SIZE, buff, count * NORFLASH_SECTOR_SIZE);
		return RES_OK;
	}
	return RES_PARERR;
}

#if FF_FS_READONLY == 0
DRESULT disk_write(BYTE pdrv, const BYTE *buff, LBA_t sector, UINT count) {
	switch (pdrv) {
	case DEV_NORFLASH:
		EraseNorflashForWrite(sector * NORFLASH_SECTOR_SIZE, count * NORFLASH_SECTOR_SIZE);
		WriteNorflashData(sector * NORFLASH_SECTOR_SIZE, (uint8_t *)buff, count * NORFLASH_SECTOR_SIZE);
		return RES_OK;
	}
	return RES_PARERR;
}
#endif

DRESULT disk_ioctl(BYTE pdrv, BYTE cmd, void *buff) {
	switch (pdrv) {
	case DEV_NORFLASH:
		switch (cmd) {
			case GET_SECTOR_COUNT:
				*(DWORD *)buff = NORFLASH_SECTOR_COUNT;
				break;
			case GET_SECTOR_SIZE:
				*(WORD *)buff = NORFLASH_SECTOR_SIZE;
				break;
		}
		return RES_OK;
	}
	return RES_PARERR;
}

DWORD get_fattime(void) {
	RtcTime_t rtcTime;
	GetRtcTime(&rtcTime);
	return ((DWORD)(rtcTime.year - 1980) << 25)
		| ((DWORD)(rtcTime.month) << 21)
		| ((DWORD)(rtcTime.day) << 16)
		| ((DWORD)(rtcTime.hour) << 11)
		| ((DWORD)(rtcTime.minute) << 5)
		| ((DWORD)(rtcTime.second) >> 1);
}

4. 修改ffconfig.h头文件

源码

/*---------------------------------------------------------------------------/
/  Configurations of FatFs Module
/---------------------------------------------------------------------------*/
#define FFCONF_DEF	80286	/* Revision ID */

/*---------------------------------------------------------------------------/
/ Function Configurations
/---------------------------------------------------------------------------*/
#define FF_FS_READONLY	0
#define FF_FS_MINIMIZE	0
#define FF_USE_FIND		0
#define FF_USE_MKFS		0
#define FF_USE_FASTSEEK	0
#define FF_USE_EXPAND	0
#define FF_USE_CHMOD	0
#define FF_USE_LABEL	0
#define FF_USE_FORWARD	0
#define FF_USE_STRFUNC	0
#define FF_PRINT_LLI	1
#define FF_PRINT_FLOAT	1
#define FF_STRF_ENCODE	3

/*---------------------------------------------------------------------------/
/ Locale and Namespace Configurations
/---------------------------------------------------------------------------*/
#define FF_CODE_PAGE	932
#define FF_USE_LFN		0
#define FF_MAX_LFN		255
#define FF_LFN_UNICODE	0
#define FF_LFN_BUF		255
#define FF_SFN_BUF		12
#define FF_FS_RPATH		0

/*---------------------------------------------------------------------------/
/ Drive/Volume Configurations
/---------------------------------------------------------------------------*/
#define FF_VOLUMES		1
#define FF_STR_VOLUME_ID	0
#define FF_VOLUME_STRS		"RAM","NAND","CF","SD","SD2","USB","USB2","USB3"
#define FF_MULTI_PARTITION	0
#define FF_MIN_SS		512
#define FF_MAX_SS		512
#define FF_LBA64		0
#define FF_MIN_GPT		0x10000000
#define FF_USE_TRIM		0

/*---------------------------------------------------------------------------/
/ System Configurations
/---------------------------------------------------------------------------*/
#define FF_FS_TINY		0
#define FF_FS_EXFAT		0
#define FF_FS_NORTC		0
#define FF_NORTC_MON	1
#define FF_NORTC_MDAY	1
#define FF_NORTC_YEAR	2022
#define FF_FS_NOFSINFO	0
#define FF_FS_LOCK		0
#define FF_FS_REENTRANT	0
#define FF_FS_TIMEOUT	1000

修改后
系统配置如下
设置宏：#define FF_FS_TINY 0，1开销小，0开销大，主要看单片机的性能。
设置宏：#define FF_FS_EXFAT 0。
功能函数配置如下：
设置宏：#define FF_USE_MKFS 1 // modify
设置宏：#define FF_USE_FASTSEEK 1 // modify
设置宏：#define FF_USE_LABEL 1 // modify
设置宏：#define FF_USE_STRFUNC 1 // modify （支持字符串）
设置宏：#define FF_CODE_PAGE 437 // modify（无特殊转化写成437就行）
设置宏：#define FF_USE_LFN 1 // modify（长文件名）
设置宏：#define FF_FS_NORTC 0
设置宏：#define FF_VOLUMES 3 // modify
设置宏：#define FF_MAX_SS 4096 //modify（这个越大读写越快）

/*---------------------------------------------------------------------------/
/  Configurations of FatFs Module
/---------------------------------------------------------------------------*/
#define FFCONF_DEF	80286	/* Revision ID */

/*---------------------------------------------------------------------------/
/ Function Configurations
/---------------------------------------------------------------------------*/
#define FF_FS_READONLY	0
#define FF_FS_MINIMIZE	0
#define FF_USE_FIND		0
#define FF_USE_MKFS		1   // modify
#define FF_USE_FASTSEEK	1  // modify
#define FF_USE_EXPAND	0
#define FF_USE_CHMOD	0
#define FF_USE_LABEL	1     // modify
#define FF_USE_FORWARD	0
#define FF_USE_STRFUNC	1     // modify
#define FF_PRINT_LLI	1
#define FF_PRINT_FLOAT	1
#define FF_STRF_ENCODE	3

/*---------------------------------------------------------------------------/
/ Locale and Namespace Configurations
/---------------------------------------------------------------------------*/
#define FF_CODE_PAGE	437  // modify
#define FF_USE_LFN		1  // modify
#define FF_MAX_LFN		255
#define FF_LFN_UNICODE	0
#define FF_LFN_BUF		255
#define FF_SFN_BUF		12
#define FF_FS_RPATH		0

/*---------------------------------------------------------------------------/
/ Drive/Volume Configurations
/---------------------------------------------------------------------------*/
#define FF_VOLUMES		3  // modify
#define FF_STR_VOLUME_ID	0
#define FF_VOLUME_STRS		"RAM","NAND","CF","SD","SD2","USB","USB2","USB3"
#define FF_MULTI_PARTITION	0
#define FF_MIN_SS		512
#define FF_MAX_SS		4096  //modify
#define FF_LBA64		0
#define FF_MIN_GPT		0x10000000
#define FF_USE_TRIM		0

/*---------------------------------------------------------------------------/
/ System Configurations
/---------------------------------------------------------------------------*/
#define FF_FS_TINY		1
#define FF_FS_EXFAT		0
#define FF_FS_NORTC		0
#define FF_NORTC_MON	1
#define FF_NORTC_MDAY	1
#define FF_NORTC_YEAR	2022
#define FF_FS_NOFSINFO	0
#define FF_FS_LOCK		0
#define FF_FS_REENTRANT	0
#define FF_FS_TIMEOUT	1000

5. 封装接口

#include <stdint.h>
#include <stdio.h>
#include <string.h>
#include <stdbool.h>
#include "sensor_drv.h"
#include "ff.h"
#include "rtc_drv.h"

#define DEV_PATH_STR           "0:"
#define SENSOR_FILE_PATH_STR   "0:温度传感器记录.txt"  //根目录

static FATFS g_fs; // 文件系统
static FIL g_sensorFile; // 文件句柄
static bool g_fsInitStat; // 是否初始化成功

void FatfsInit(void) {
	FRESULT res;
	uint8_t workBuffer[FF_MAX_SS];

	res = f_mount(&g_fs, DEV_PATH_STR, 1); // 挂载文件系统
	if (res == FR_NO_FILESYSTEM) { // 没有部署文件系统
		res = f_mkfs(DEV_PATH_STR, 0, workBuffer, FF_MAX_SS); // 创建文件系统
		if (res == FR_OK) {
			f_mount(NULL, DEV_PATH_STR, 1); // 取消挂载
			res = f_mount(&g_fs, DEV_PATH_STR, 1); // 重新挂载
		}
	}
	if (res != FR_OK) {
		printf("文件系统初始化失败，错误码：%d.\n", res);
		g_fsInitStat = false;
		return;
	}
	g_fsInitStat = true;
}

void FatfsTask(void) {
	if (!g_fsInitStat) {
		return;
	}
	FRESULT res;

	res = f_open(&g_sensorFile, SENSOR_FILE_PATH_STR, FA_OPEN_APPEND | FA_WRITE);
	if (res != FR_OK) {
		printf("打开%s失败，错误码：%d.\n", SENSOR_FILE_PATH_STR, res);
		return;
	}
	RtcTime_t rtcTime;
	GetRtcTime(&rtcTime);
	SensorData_t sensorData;
	GetSensorData(&sensorData);

	if (f_printf(&g_sensorFile, "%d-%02d-%02d %02d:%02d:%02d, temp is %.1f, humi is %d\n",
		rtcTime.year, rtcTime.month, rtcTime.day, rtcTime.hour, rtcTime.minute, rtcTime.second,
		sensorData.temp, sensorData.humi) < 0) {
		printf("写数据失败.\n");
	}
	f_close(&g_sensorFile); // 文件关闭
}

void PrintSensorFile(void) {
	if (!g_fsInitStat) {
		return;
	}
	FRESULT res;

	res = f_open(&g_sensorFile, SENSOR_FILE_PATH_STR, FA_OPEN_EXISTING | FA_READ);
	if (res != FR_OK) {
		printf("打开%s失败，错误码：%d.\n", SENSOR_FILE_PATH_STR, res);
		return;
	}
	uint8_t readBuf[50];
	memset(readBuf, 0, sizeof(readBuf));

	while (NULL != f_gets((TCHAR *)readBuf, sizeof(readBuf), &g_sensorFile)) {
		printf("%s", readBuf);
		memset(readBuf, 0, sizeof(readBuf));
	}
	f_unlink(SENSOR_FILE_PATH_STR); // 删除文档
}

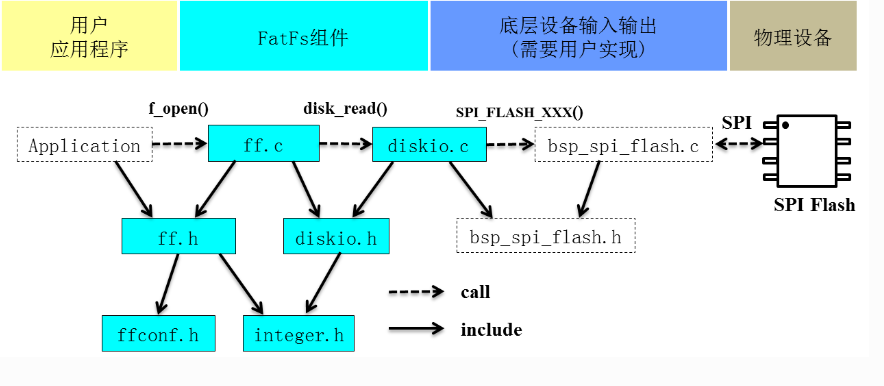

7. 调用关系

8. NorFlash驱动

/*!
    \file  gd25qxx.c
    \brief SPI flash gd25qxx driver
*/

#include "gd25qxx.h"
#include "gd32f403.h"
#include <string.h>

#define WRITE            0x02     /* write to memory instruction */
#define WRSR             0x01     /* write status register instruction */
#define WREN             0x06     /* write enable instruction */

#define READ             0x03     /* read from memory instruction */
#define RDSR             0x05     /* read status register instruction  */
#define RDID             0x9F     /* read identification */
#define SE               0x20     /* sector erase instruction */
#define BE               0xC7     /* bulk erase instruction */

#define WIP_FLAG         0x01     /* write in progress(wip)flag */
#define DUMMY_BYTE       0xA5

void spi_flash_init(void) {
    spi_parameter_struct spi_init_struct;

    rcu_periph_clock_enable(RCU_GPIOA);
    rcu_periph_clock_enable(RCU_GPIOE);
    rcu_periph_clock_enable(RCU_SPI0);

    gpio_init(GPIOA, GPIO_MODE_AF_PP, GPIO_OSPEED_50MHZ, GPIO_PIN_5 | GPIO_PIN_7);
    gpio_init(GPIOA, GPIO_MODE_IN_FLOATING, GPIO_OSPEED_50MHZ, GPIO_PIN_6);
    gpio_init(GPIOE, GPIO_MODE_OUT_PP, GPIO_OSPEED_50MHZ, GPIO_PIN_3);

    SPI_FLASH_CS_HIGH();

    spi_init_struct.trans_mode           = SPI_TRANSMODE_FULLDUPLEX;
    spi_init_struct.device_mode          = SPI_MASTER;;
    spi_init_struct.frame_size           = SPI_FRAMESIZE_8BIT;;
    spi_init_struct.clock_polarity_phase = SPI_CK_PL_LOW_PH_1EDGE;
    spi_init_struct.nss                  = SPI_NSS_SOFT;
    spi_init_struct.prescale             = SPI_PSC_8 ;
    spi_init_struct.endian               = SPI_ENDIAN_MSB;;
    spi_init(SPI0, &spi_init_struct);

    spi_enable(SPI0);
}

void spi_flash_sector_erase(uint32_t sector_addr) {
    spi_flash_write_enable();

    SPI_FLASH_CS_LOW();
    spi_flash_send_byte(SE);
    spi_flash_send_byte((sector_addr & 0xFF0000) >> 16);
    spi_flash_send_byte((sector_addr & 0xFF00) >> 8);
    spi_flash_send_byte(sector_addr & 0xFF);
    SPI_FLASH_CS_HIGH();

    spi_flash_wait_for_write_end();
}

void spi_flash_bulk_erase(void) {
    spi_flash_write_enable();

    SPI_FLASH_CS_LOW();
    spi_flash_send_byte(BE);
    SPI_FLASH_CS_HIGH();

    spi_flash_wait_for_write_end();
}

void spi_flash_page_write(uint8_t* pbuffer, uint32_t write_addr, uint16_t num_byte_to_write) {
    spi_flash_write_enable();

    SPI_FLASH_CS_LOW();
    spi_flash_send_byte(WRITE);
    spi_flash_send_byte((write_addr & 0xFF0000) >> 16);
    spi_flash_send_byte((write_addr & 0xFF00) >> 8);
    spi_flash_send_byte(write_addr & 0xFF);

    while(num_byte_to_write--) {
        spi_flash_send_byte(*pbuffer);
        pbuffer++;
    }

    SPI_FLASH_CS_HIGH();

    spi_flash_wait_for_write_end();
}

void spi_flash_buffer_write(uint8_t* pbuffer, uint32_t write_addr, uint16_t num_byte_to_write) {
    uint8_t num_of_page = 0, num_of_single = 0, addr = 0, count = 0, temp = 0;

    addr          = write_addr % SPI_FLASH_PAGE_SIZE;
    count         = SPI_FLASH_PAGE_SIZE - addr;
    num_of_page   = num_byte_to_write / SPI_FLASH_PAGE_SIZE;
    num_of_single = num_byte_to_write % SPI_FLASH_PAGE_SIZE;

    if(0 == addr) {
        if(0 == num_of_page)
            spi_flash_page_write(pbuffer, write_addr, num_byte_to_write);
        else {
            while(num_of_page--) {
                spi_flash_page_write(pbuffer, write_addr, SPI_FLASH_PAGE_SIZE);
                write_addr += SPI_FLASH_PAGE_SIZE;
                pbuffer += SPI_FLASH_PAGE_SIZE;
            }
            spi_flash_page_write(pbuffer, write_addr, num_of_single);
        }
    } else {
        if(0 == num_of_page) {
            if(num_of_single > count) {
                temp = num_of_single - count;
                spi_flash_page_write(pbuffer, write_addr, count);
                write_addr += count;
                pbuffer += count;
                spi_flash_page_write(pbuffer, write_addr, temp);
            } else
                spi_flash_page_write(pbuffer, write_addr, num_byte_to_write);
        } else {
            num_byte_to_write -= count;
            num_of_page = num_byte_to_write / SPI_FLASH_PAGE_SIZE;
            num_of_single = num_byte_to_write % SPI_FLASH_PAGE_SIZE;

            spi_flash_page_write(pbuffer, write_addr, count);
            write_addr += count;
            pbuffer += count;

            while(num_of_page--) {
                spi_flash_page_write(pbuffer, write_addr, SPI_FLASH_PAGE_SIZE);
                write_addr += SPI_FLASH_PAGE_SIZE;
                pbuffer += SPI_FLASH_PAGE_SIZE;
            }

            if(0 != num_of_single)
                spi_flash_page_write(pbuffer, write_addr, num_of_single);
        }
    }
}

void spi_flash_buffer_read(uint8_t* pbuffer, uint32_t read_addr, uint16_t num_byte_to_read) {
    SPI_FLASH_CS_LOW();
    spi_flash_send_byte(READ);
    spi_flash_send_byte((read_addr & 0xFF0000) >> 16);
    spi_flash_send_byte((read_addr & 0xFF00) >> 8);
    spi_flash_send_byte(read_addr & 0xFF);

    while(num_byte_to_read--) {
        *pbuffer = spi_flash_send_byte(DUMMY_BYTE);
        pbuffer++;
    }

    SPI_FLASH_CS_HIGH();
}

uint32_t spi_flash_read_id(void) {
    uint32_t temp = 0, temp0 = 0, temp1 = 0, temp2 = 0;

    SPI_FLASH_CS_LOW();
    spi_flash_send_byte(0x9F);
    temp0 = spi_flash_send_byte(DUMMY_BYTE);
    temp1 = spi_flash_send_byte(DUMMY_BYTE);
    temp2 = spi_flash_send_byte(DUMMY_BYTE);
    SPI_FLASH_CS_HIGH();

    temp = (temp0 << 16) | (temp1 << 8) | temp2;

    return temp;
}

void spi_flash_start_read_sequence(uint32_t read_addr) {
    SPI_FLASH_CS_LOW();
    spi_flash_send_byte(READ);
    spi_flash_send_byte((read_addr & 0xFF0000) >> 16);
    spi_flash_send_byte((read_addr & 0xFF00) >> 8);
    spi_flash_send_byte(read_addr & 0xFF);
}

uint8_t spi_flash_read_byte(void) {
    return(spi_flash_send_byte(DUMMY_BYTE));
}

uint8_t spi_flash_send_byte(uint8_t byte) {
    while (RESET == spi_i2s_flag_get(SPI0, SPI_FLAG_TBE));
    spi_i2s_data_transmit(SPI0, byte);
    while(RESET == spi_i2s_flag_get(SPI0, SPI_FLAG_RBNE));
    return(spi_i2s_data_receive(SPI0));
}

uint16_t spi_flash_send_halfword(uint16_t half_word) {
    while(RESET == spi_i2s_flag_get(SPI0, SPI_FLAG_TBE));
    spi_i2s_data_transmit(SPI0, half_word);
    while(RESET == spi_i2s_flag_get(SPI0, SPI_FLAG_RBNE));
    return spi_i2s_data_receive(SPI0);
}

void spi_flash_write_enable(void) {
    SPI_FLASH_CS_LOW();
    spi_flash_send_byte(WREN);
    SPI_FLASH_CS_HIGH();
}

void spi_flash_wait_for_write_end(void) {
    uint8_t flash_status = 0;

    SPI_FLASH_CS_LOW();
    spi_flash_send_byte(RDSR);

    do {
        flash_status = spi_flash_send_byte(DUMMY_BYTE);
    } while((flash_status & WIP_FLAG) == SET);

    SPI_FLASH_CS_HIGH();
}

/*!
    \file  gd25qxx.h
    \brief the header file of SPI flash gd25qxx driver
*/

#ifndef GD25QXX_H
#define GD25QXX_H

#include "gd32f403.h"

#define  SPI_FLASH_PAGE_SIZE       0x100
#define  SPI_FLASH_CS_LOW()        gpio_bit_reset(GPIOE, GPIO_PIN_3)
#define  SPI_FLASH_CS_HIGH()       gpio_bit_set(GPIOE, GPIO_PIN_3)

void spi_flash_init(void);
void spi_flash_sector_erase(uint32_t sector_addr);
void spi_flash_bulk_erase(void);
void spi_flash_page_write(uint8_t* pbuffer, uint32_t write_addr, uint16_t num_byte_to_write);
void spi_flash_buffer_write(uint8_t* pbuffer, uint32_t write_addr, uint16_t num_byte_to_write);
void spi_flash_buffer_read(uint8_t* pbuffer, uint32_t read_addr, uint16_t num_byte_to_read);
uint32_t spi_flash_read_id(void);
void spi_flash_start_read_sequence(uint32_t read_addr);
uint8_t spi_flash_read_byte(void);
uint8_t spi_flash_send_byte(uint8_t byte);
uint16_t spi_flash_send_halfword(uint16_t half_word);
void spi_flash_write_enable(void);
void spi_flash_wait_for_write_end(void);

#endif /* GD25QXX_H */

标签: NorFlash FATFS

返回列表

上一篇：Spring Boot 多环境配置：Profile 驱动的灵活配置管理

下一篇：Bad Robo项目架构解析与快速启动指南

Linux crontab 详解

1) crontab 是什么cron 是 Linux 的定时任务守护进程；crontab 是用来编辑/查看“按时间周期执行命令”的表（cron table）。常见两类：用户 crontab：每个用户一份（crontab -e 编辑）系统级 crontab / cron.d：可指定执行用户（/etc/crontab、/etc/cron.d/*）2) crontab 时间...

富文本里可以允许的 HTML 属性

一、所有标签默认允许的安全属性（极少）class （可选）id （通常建议禁用）title️ 注意：id 容易被滥用做锚点注入，很多系统直接禁用class 允许的话最好只允许固定前缀（如 editor-*）二、a 标签允许属性<a href="" t...

方法一：通过官网安装包（最简单，适合初学者）如果你只是想快速安装并开始使用，这是最直接的方法。访问 Node.js 官网。页面会显示两个版本：LTS (Recommended For Most Users)：长期支持版，最稳定。建议选这个。Current：最新特性版，包含最新功能但可能不够稳定。下载 .pkg 安装包并运行。按照安装向导点击“下一步”即可完成。方法二：使用 Homebrew 安装（...

Dom\HTML_NO_DEFAULT_NS 的副作用：自动加闭合标签

在使用Dom\HTMLDocument时，Dom\HTML_NO_DEFAULT_NS 将禁止在解析过程中设置元素的命名空间, 此设置是为了与DOMDocument向后兼容而存在的。当使用它时，已知的一个副作用就是：自动加闭合标签例如 </img> 为什么会这样？当你使用：Dom\HTML_NO_DEFAULT_NS文档会变成无命名空间模式，此时内部更接近 XML...

Laravel 事件和监听器创建

在 Laravel 中，使用 Artisan 命令创建 Events（事件）和 Listeners（监听器）是非常高效的。你可以通过以下几种方式来实现：1. 手动创建单个 Event如果你只想创建一个事件类，可以使用 make:event 命令：Bashphp artisan make:event UserRegistered执行后，文件将生成在 app/Even...

linux screen 用法详情 (nohup 的替代方案)

一、screen 是什么？能干嘛？screen 是一个终端复用器，可以：在一个 SSH 会话中开多个“虚拟终端”SSH 断线后，程序仍然在后台运行随时重新连接到原来的会话特别适合：nohup 的替代方案跑脚本 / 爬虫 / 训练模型运维、远程开发二、安装 screen# CentOS / Rocky / Almayum install -y screen# Debian / Ubuntuapt i...

老程序员博客

将FatFS移植到NorFlash

将FatFS文件系统移植到NorFlash

1. 下载源码

2. 在Keil工程中创建FatFs文件夹

2.1 将下载的源码复制到FatFs文件夹

2.2 在Keil中添加FatFs

3. 修改diskio.c

4. 修改ffconfig.h头文件

5. 封装接口

7. 调用关系

8. NorFlash驱动

相关文章

Linux crontab 详解

富文本里可以允许的 HTML 属性

Mac 安装 Node.js 指南

Dom\HTML_NO_DEFAULT_NS 的副作用：自动加闭合标签

Laravel 事件和监听器创建

linux screen 用法详情 (nohup 的替代方案)

发表评论

Copyright © agingcoder.cn

Powered By Z-BlogPHP. Theme by TOYEAN.

老程序员博客

将FatFS移植到NorFlash

将FatFS文件系统移植到NorFlash

1. 下载源码

2. 在Keil工程中创建FatFs文件夹

2.1 将下载的源码复制到FatFs文件夹

2.2 在Keil中添加FatFs

3. 修改diskio.c

4. 修改ffconfig.h头文件

5. 封装接口

7. 调用关系

8. NorFlash驱动

相关文章

Linux crontab 详解

富文本里可以允许的 HTML 属性

Mac 安装 Node.js 指南

Dom\HTML_NO_DEFAULT_NS 的副作用：自动加闭合标签

Laravel 事件和监听器创建

linux screen 用法详情 (nohup 的替代方案)

发表评论取消回复

Copyright © agingcoder.cn

Powered By Z-BlogPHP. Theme by TOYEAN.

发表评论
