ESP32 SPI从设备10MHz通信速率实测与优化
实测数据表现

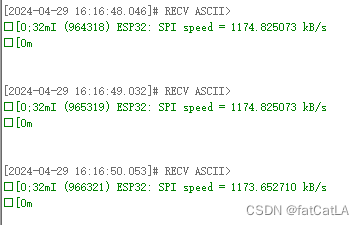

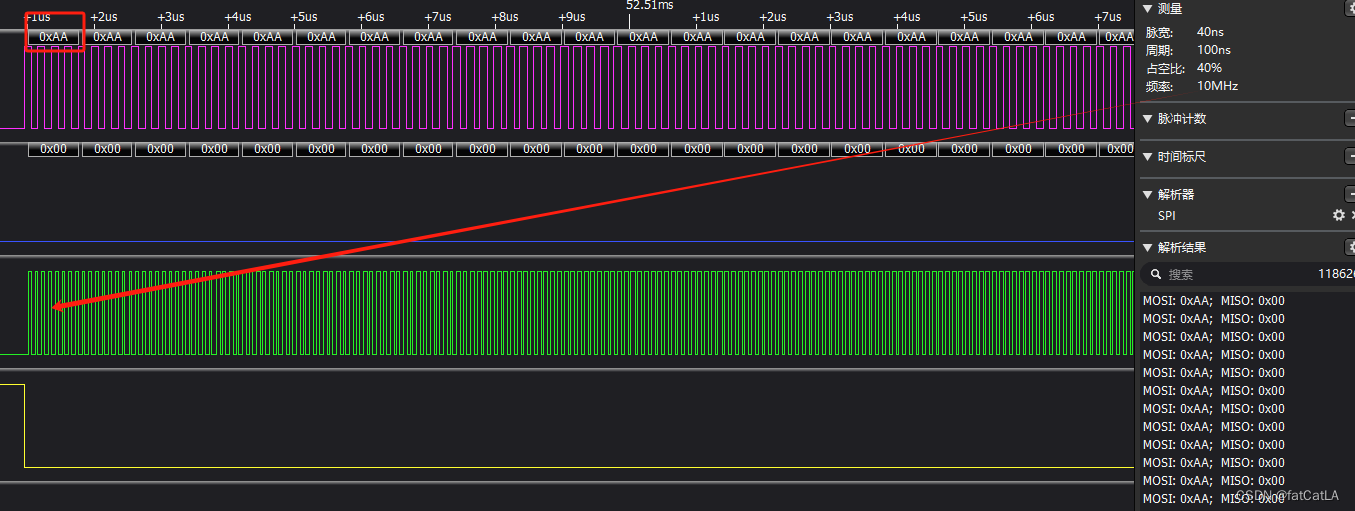

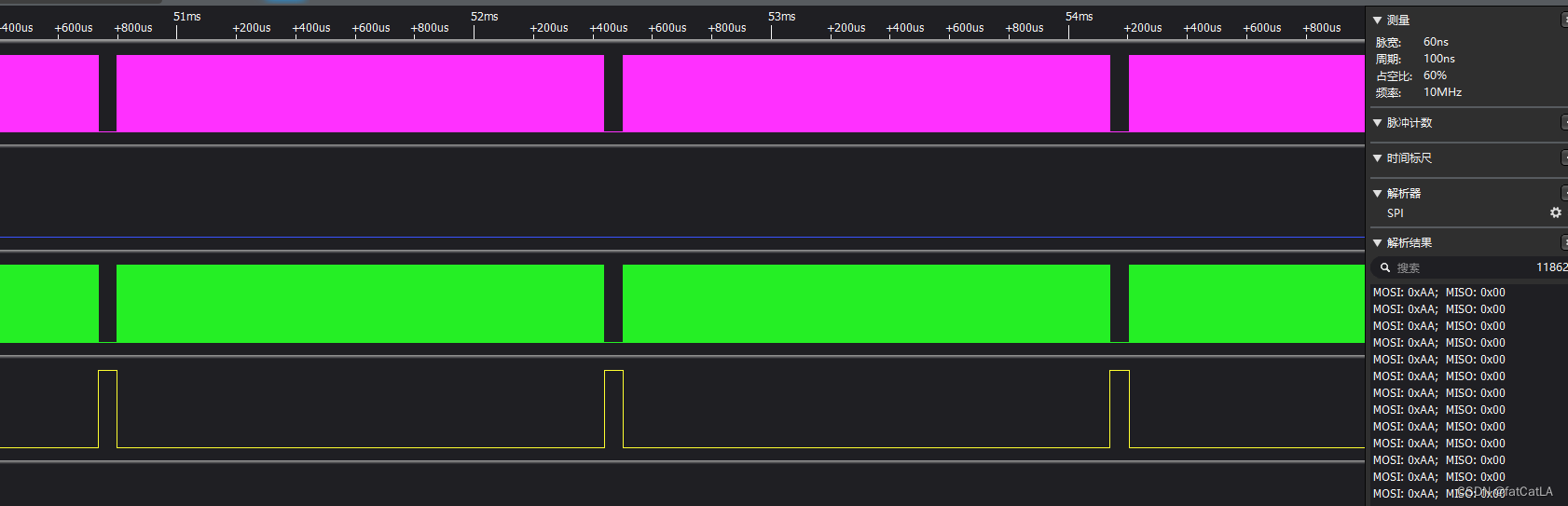

在嵌入式高速数据交互场景中，SPI总线常被用作主控与外设之间的高吞吐通道。本文基于ESP-IDF 5.1框架，对ESP32作为SPI从设备的极限传输性能进行压测。通过底层优化与规范连线，实际测得接收速率约为1174 KB/s，已非常逼近10MHz时钟、8位数据位宽下的理论峰值（1.25 MB/s）。测试过程中的速率统计与逻辑分析仪波形如下：
主机端（Master）架构与实现
主机节点负责发起总线事务。核心配置需将SPI时钟锁定至10MHz，并配置GPIO上升沿中断用于捕获从设备的就绪握手信号。以下为重构后的主机核心逻辑：
#include <stdio.h>
#include <stdint.h>
#include <string.h>
#include "esp_log.h"
#include "freertos/FreeRTOS.h"
#include "freertos/semphr.h"
#include "driver/spi_master.h"
#include "driver/gpio.h"
#include "esp_timer.h"
#define PIN_HSHK 2
#define PIN_SPI_MOSI 12
#define PIN_SPI_MISO 13
#define PIN_SPI_CLK 15
#define PIN_SPI_CS 14
#define HOST_MASTER SPI2_HOST
#define TX_LEN 2048
static SemaphoreHandle_t slave_rdy_sem;
static uint32_t last_irq_tick;
static void IRAM_ATTR hshk_intr_handler(void *arg) {
uint32_t now = esp_timer_get_time();
if (now - last_irq_tick < 1000) return; // 1ms硬件消抖
last_irq_tick = now;
BaseType_t xHigherPriorityTaskWoken = pdFALSE;
xSemaphoreGiveFromISR(slave_rdy_sem, &xHigherPriorityTaskWoken);
if (xHigherPriorityTaskWoken) portYIELD_FROM_ISR();
}
void app_main(void) {
spi_device_handle_t dev_hdl;
spi_bus_config_t bus_cfg = {
.mosi_io_num = PIN_SPI_MOSI, .miso_io_num = PIN_SPI_MISO,
.sclk_io_num = PIN_SPI_CLK, .quadwp_io_num = -1, .quadhd_io_num = -1
};
spi_device_interface_config_t dev_cfg = {
.clock_speed_hz = 10000000, .mode = 0, .spics_io_num = PIN_SPI_CS,
.cs_ena_posttrans = 3, .queue_size = 3, .command_bits = 0,
.address_bits = 0, .dummy_bits = 0, .duty_cycle_pos = 128
};
gpio_config_t hshk_cfg = {
.pin_bit_mask = (1ULL << PIN_HSHK), .mode = GPIO_MODE_INPUT,
.pull_up_en = GPIO_PULLUP_ENABLE, .intr_type = GPIO_INTR_POSEDGE
};
WORD_ALIGNED_ATTR uint8_t *tx_data = heap_caps_malloc(TX_LEN, MALLOC_CAP_DMA);
WORD_ALIGNED_ATTR uint8_t *rx_data = heap_caps_malloc(TX_LEN, MALLOC_CAP_DMA);
memset(tx_data, 0xAA, TX_LEN);
slave_rdy_sem = xSemaphoreCreateBinary();
xSemaphoreGive(slave_rdy_sem); // 初始置位，防止从机先启动
gpio_config(&hshk_cfg);
gpio_install_isr_service(0);
gpio_isr_handler_add(PIN_HSHK, hshk_intr_handler, NULL);
ESP_ERROR_CHECK(spi_bus_initialize(HOST_MASTER, &bus_cfg, SPI_DMA_CH_AUTO));
ESP_ERROR_CHECK(spi_bus_add_device(HOST_MASTER, &dev_cfg, &dev_hdl));
spi_transaction_t txn = { .length = TX_LEN * 8, .tx_buffer = tx_data, .rx_buffer = rx_data };
ESP_LOGI("MAIN", "Master loop started @ 10MHz");
while (1) {
xSemaphoreTake(slave_rdy_sem, portMAX_DELAY);
ESP_ERROR_CHECK(spi_device_transmit(dev_hdl, &txn));
}
}主机代码主要调整了引脚宏定义与中断消抖策略。通过记录微秒级时间戳过滤毛刺，确保握手机制不会因信号 ringing 产生误触发。数据缓冲区强制使用DMA对齐分配，避免Cache一致性导致的事务校验失败。
从机端（Slave）回调优化与吞吐量统计
在高速SPI通信中，从设备回调函数的执行延迟会直接拉长主机等待窗口。官方示例依赖GPIO库函数进行引脚电平翻转，函数调用栈与参数校验会引入数微秒的额外开销。本方案改为直接操作外设寄存器，将握手响应时间压缩至纳秒级，并基于高精度定时器实现实时吞吐量计算。
#include <stdio.h>
#include <stdint.h>
#include <string.h>
#include "esp_log.h"
#include "freertos/FreeRTOS.h"
#include "freertos/task.h"
#include "driver/spi_slave.h"
#include "driver/gpio.h"
#include "esp_timer.h"
#include "soc/gpio_reg.h"
#if CONFIG_IDF_TARGET_ESP32
#define PIN_HSHK 2
#define PIN_SPI_MOSI 12
#define PIN_SPI_MISO 13
#define PIN_SPI_CLK 15
#define PIN_SPI_CS 14
#define HOST_SLAVE HSPI_HOST
#elif CONFIG_IDF_TARGET_ESP32C3 || CONFIG_IDF_TARGET_ESP32S3
#define PIN_HSHK 2
#define PIN_SPI_MOSI 11
#define PIN_SPI_MISO 13
#define PIN_SPI_CLK 12
#define PIN_SPI_CS 10
#define HOST_SLAVE SPI2_HOST
#endif
#define REG_GPIO_SET (*(volatile uint32_t *)GPIO_OUT_W1TS_REG)
#define REG_GPIO_CLR (*(volatile uint32_t *)GPIO_OUT_W1TC_REG)
#define HSHK_BIT_MASK (1U << PIN_HSHK)
#define RX_LEN 2048
void IRAM_ATTR on_xfer_ready(spi_slave_transaction_t *trans) {
REG_GPIO_SET |= HSHK_BIT_MASK; // 寄存器直写置高
}
void IRAM_ATTR on_xfer_done(spi_slave_transaction_t *trans) {
REG_GPIO_CLR |= HSHK_BIT_MASK; // 寄存器直写拉低
}
void app_main(void) {
spi_bus_config_t bus_cfg = {
.mosi_io_num = PIN_SPI_MOSI, .miso_io_num = PIN_SPI_MISO,
.sclk_io_num = PIN_SPI_CLK, .quadwp_io_num = -1, .quadhd_io_num = -1
};
spi_slave_interface_config_t slave_cfg = {
.mode = 0, .spics_io_num = PIN_SPI_CS, .queue_size = 3,
.post_setup_cb = on_xfer_ready, .post_trans_cb = on_xfer_done
};
gpio_config_t io_cfg = {
.pin_bit_mask = (1ULL << PIN_HSHK), .mode = GPIO_MODE_OUTPUT,
.pull_up_en = GPIO_PULLUP_DISABLE, .pull_down_en = GPIO_PULLDOWN_DISABLE
};
gpio_config(&io_cfg);
gpio_set_pull_mode(PIN_SPI_MOSI, GPIO_PULLUP_ONLY);
gpio_set_pull_mode(PIN_SPI_CLK, GPIO_PULLUP_ONLY);
gpio_set_pull_mode(PIN_SPI_CS, GPIO_PULLUP_ONLY);
ESP_ERROR_CHECK(spi_slave_initialize(HOST_SLAVE, &bus_cfg, &slave_cfg, SPI_DMA_CH_AUTO));
WORD_ALIGNED_ATTR uint8_t *rx_buf = heap_caps_malloc(RX_LEN, MALLOC_CAP_DMA);
WORD_ALIGNED_ATTR uint8_t *tx_buf = heap_caps_malloc(RX_LEN, MALLOC_CAP_DMA);
memset(rx_buf, 0, RX_LEN);
memset(tx_buf, 0x55, RX_LEN);
spi_slave_transaction_t txn = { .length = RX_LEN * 8, .tx_buffer = tx_buf, .rx_buffer = rx_buf };
uint32_t total_bytes = 0;
int64_t start_us = esp_timer_get_time();
ESP_LOGI("SLAVE", "Ready to receive @ 10MHz");
while (1) {
esp_err_t ret = spi_slave_transmit(HOST_SLAVE, &txn, portMAX_DELAY);
if (ret == ESP_OK) {
total_bytes += txn.trans_len / 8;
}
int64_t curr_us = esp_timer_get_time();
if (curr_us - start_us >= 1000000) { // 1秒窗口统计
float rate_kbps = ((float)total_bytes) / 1024.0f;
ESP_LOGI("SLAVE", "Throughput: %.2f KB/s", rate_kbps);
total_bytes = 0;
start_us = curr_us;
}
}
}从机逻辑重点重构了事务前后置回调。通过直接操作`GPIO_OUT_W1TS`与`GPIO_OUT_W1TC`写1置位/清除寄存器，彻底绕过HAL层函数调用开销。速率统计模块改用`esp_timer_get_time()`获取系统高精度微秒计数，每累积1秒数据即动态输出一次KB/s吞吐量，便于实时观测总线有效带宽。
关键实现细节
- 物理层阻抗匹配：10MHz时钟边沿切换迅速，分布参数影响显著。主从设备间必须使用短距离、低阻抗的专用排线连接。普通杜邦线寄生电容过大，极易引发信号过冲与采样误码。
- 内存对齐与DMA约束：ESP32 SPI控制器硬件直接访问内存，缓冲区必须通过`MALLOC_CAP_DMA`标志分配，且结构体需满足四字节对齐要求，否则事务队列将触发非法地址异常。
- 回调函数执行边界：`post_setup_cb`与`post_trans_cb`运行于中断上下文中，严禁调用阻塞型API或格式化打印。若需处理接收数据，应将指针压入队列，交由独立任务解析，以保证总线握手周期不被拉长。
