基于Fragment与ViewPager实现微信风格页面切换
在Android开发中，实现类似微信5.0的滑动切换界面，常被误认为依赖TabHost，实则核心是通过Fragment配合ViewPager完成。这种设计不仅提升了用户体验，也体现了对UI交互逻辑的深入理解。本文将详细解析如何使用Fragment与ViewPager构建一个可动态切换、支持颜色渐变和文本高亮的底部导航栏。

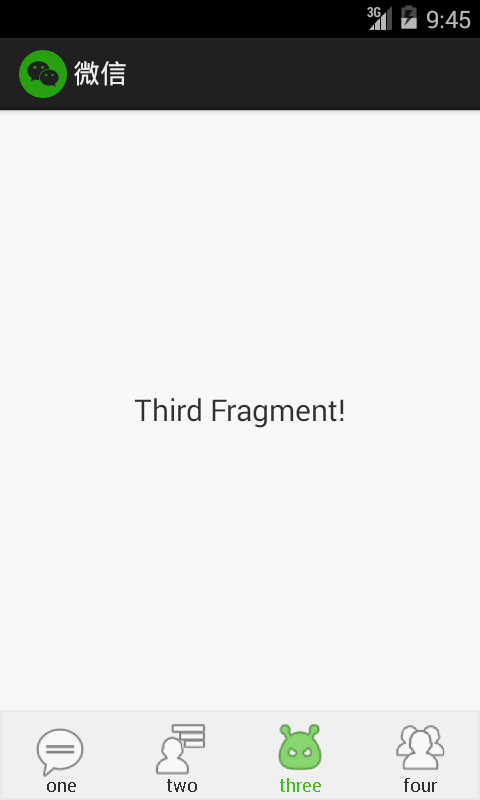

最终效果如下所示：
一、自定义控件：带颜色过渡的图标按钮
我们首先创建一个自定义视图，用于呈现底部导航图标，并支持在滑动过程中实现颜色渐变与文字叠加效果。
public class DynamicIconWithText extends View {
private Bitmap iconBitmap;
private Paint paint;
private Rect iconRect;
private String label = "首页";
private int textColor = 0xFF555555;
private int highlightColor = 0xFF45C01A;
private float alpha = 0f;
private Paint textPaint;
private Rect textBounds = new Rect();
public DynamicIconWithText(Context context) {
super(context);
init();
}
public DynamicIconWithText(Context context, AttributeSet attrs) {
super(context, attrs);
TypedArray a = context.getTheme().obtainStyledAttributes(attrs,
R.styleable.DynamicIconView, 0, 0);
try {
iconBitmap = ((BitmapDrawable) a.getDrawable(R.styleable.DynamicIconView_icon)).getBitmap();
highlightColor = a.getColor(R.styleable.DynamicIconView_highlight_color, 0xFF45C01A);
label = a.getString(R.styleable.DynamicIconView_label);
int textSize = a.getDimensionPixelSize(R.styleable.DynamicIconView_text_size, (int) TypedValue.applyDimension(TypedValue.COMPLEX_UNIT_SP, 10, getResources().getDisplayMetrics()));
textPaint.setTextSize(textSize);
} finally {
a.recycle();
}
init();
}
private void init() {
paint = new Paint(Paint.ANTI_ALIAS_FLAG | Paint.DITHER_FLAG);
textPaint = new Paint(Paint.ANTI_ALIAS_FLAG);
textPaint.setColor(textColor);
textPaint.getTextBounds(label, 0, label.length(), textBounds);
}
@Override
protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {
super.onMeasure(widthMeasureSpec, heightMeasureSpec);
int size = Math.min(getMeasuredWidth(), getMeasuredHeight());
int iconSize = Math.min(size - getPaddingLeft() - getPaddingRight(),
size - getPaddingTop() - getPaddingBottom() - textBounds.height());
int left = (getMeasuredWidth() - iconSize) / 2;
int top = (getMeasuredHeight() - textBounds.height() - iconSize) / 2;
iconRect = new Rect(left, top, left + iconSize, top + iconSize);
}
@Override
protected void onDraw(Canvas canvas) {
int alphaValue = (int) (255 * alpha);
canvas.drawBitmap(iconBitmap, null, iconRect, null);
// 绘制高亮层
Bitmap overlay = Bitmap.createBitmap(getMeasuredWidth(), getMeasuredHeight(), Bitmap.Config.ARGB_8888);
Canvas overlayCanvas = new Canvas(overlay);
paint.setColor(highlightColor);
paint.setAlpha(alphaValue);
overlayCanvas.drawRect(iconRect, paint);
paint.setXfermode(new PorterDuffXfermode(PorterDuff.Mode.DST_IN));
paint.setAlpha(255);
overlayCanvas.drawBitmap(iconBitmap, null, iconRect, paint);
canvas.drawBitmap(overlay, 0, 0, null);
// 绘制原始文字（透明）
textPaint.setColor(0x333333);
textPaint.setAlpha(255 - alphaValue);
canvas.drawText(label, iconRect.centerX() - textBounds.width() / 2,
iconRect.bottom + textBounds.height(), textPaint);
// 绘制高亮文字
textPaint.setColor(highlightColor);
textPaint.setAlpha(alphaValue);
canvas.drawText(label, iconRect.centerX() - textBounds.width() / 2,
iconRect.bottom + textBounds.height(), textPaint);
}
public void setHighlightAlpha(float value) {
this.alpha = value;
invalidate();
}
public void setIconResource(int resId) {
this.iconBitmap = BitmapFactory.decodeResource(getResources(), resId);
invalidate();
}
public void setHighlightColor(int color) {
this.highlightColor = color;
invalidate();
}
@Override
protected Parcelable onSaveInstanceState() {
Bundle bundle = new Bundle();
bundle.putParcelable("super_state", super.onSaveInstanceState());
bundle.putFloat("alpha", alpha);
return bundle;
}
@Override
protected void onRestoreInstanceState(Parcelable state) {
if (state instanceof Bundle) {
Bundle bundle = (Bundle) state;
alpha = bundle.getFloat("alpha");
super.onRestoreInstanceState(bundle.getParcelable("super_state"));
} else {
super.onRestoreInstanceState(state);
}
}
}
二、定义自定义属性
在 res/values/attrs.xml 中声明自定义属性：
<resources>
<attr name="icon" format="reference"/>
<attr name="highlight_color" format="color"/>
<attr name="label" format="string"/>
<attr name="text_size" format="dimension"/>
<declare-styleable name="DynamicIconView">
<attr name="icon"/>
<attr name="highlight_color"/>
<attr name="label"/>
<attr name="text_size"/>
</declare-styleable>
</resources>
三、底部背景样式
在 res/drawable/tab_bg.xml 中定义底部栏背景：
<?xml version="1.0" encoding="utf-8"?>
<shape xmlns:android="http://schemas.android.com/apk/res/android">
<solid android:color="#F7F7F7"/>
<stroke android:width="1dp" android:color="#eee"/>
</shape>
四、字符串资源配置
在 res/values/strings.xml 中添加标签：
<resources>
<string name="app_name">微信</string>
<string name="tab_home">首页</string>
<string name="tab_contacts">联系人</string>
<string name="tab_discover">发现</string>
<string name="tab_profile">我</string>
</resources>
五、主布局文件
res/layout/activity_main.xml：
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:app="http://schemas.android.com/apk/res-auto"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:orientation="vertical">
<android.support.v4.view.ViewPager
android:id="@+id/view_pager"
android:layout_width="match_parent"
android:layout_height="0dp"
android:layout_weight="1"/>
<LinearLayout
android:layout_width="match_parent"
android:layout_height="60dp"
android:background="@drawable/tab_bg"
android:orientation="horizontal">
<com.example.dynamictabs.DynamicIconWithText
android:id="@+id/indicator_home"
android:layout_width="0dp"
android:layout_height="match_parent"
android:layout_weight="1"
android:padding="5dp"
app:icon="@drawable/ic_home"
app:label="@string/tab_home"
app:text_size="12sp"/>
<com.example.dynamictabs.DynamicIconWithText
android:id="@+id/indicator_contacts"
android:layout_width="0dp"
android:layout_height="match_parent"
android:layout_weight="1"
android:padding="5dp"
app:icon="@drawable/ic_contacts"
app:label="@string/tab_contacts"
app:text_size="12sp"/>
<com.example.dynamictabs.DynamicIconWithText
android:id="@+id/indicator_discover"
android:layout_width="0dp"
android:layout_height="match_parent"
android:layout_weight="1"
android:padding="5dp"
app:icon="@drawable/ic_discover"
app:label="@string/tab_discover"
app:text_size="12sp"/>
<com.example.dynamictabs.DynamicIconWithText
android:id="@+id/indicator_profile"
android:layout_width="0dp"
android:layout_height="match_parent"
android:layout_weight="1"
android:padding="5dp"
app:icon="@drawable/ic_profile"
app:label="@string/tab_profile"
app:text_size="12sp"/>
</LinearLayout>
</LinearLayout>
六、Fragment实现
每个页面由独立的Fragment承载：
public class PageFragment extends Fragment {
private String title;
public static PageFragment newInstance(String title) {
PageFragment fragment = new PageFragment();
Bundle args = new Bundle();
args.putString("title", title);
fragment.setArguments(args);
return fragment;
}
@Override
public void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
if (getArguments() != null) {
title = getArguments().getString("title");
}
}
@Override
public View onCreateView(LayoutInflater inflater, ViewGroup container, Bundle savedInstanceState) {
TextView textView = new TextView(getActivity());
textView.setText(title);
textView.setGravity(Gravity.CENTER);
textView.setTextSize(18);
textView.setBackgroundColor(Color.WHITE);
return textView;
}
}
七、主Activity逻辑
MainActivity.java：
public class MainActivity extends FragmentActivity implements ViewPager.OnPageChangeListener, View.OnClickListener {
private ViewPager viewPager;
private List<Fragment> fragments;
private FragmentStatePagerAdapter adapter;
private List<DynamicIconWithText> indicators;
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_main);
viewPager = findViewById(R.id.view_pager);
initFragments();
viewPager.setAdapter(adapter);
viewPager.addOnPageChangeListener(this);
initIndicators();
}
private void initFragments() {
fragments = new ArrayList<>();
String[] titles = {"首页", "联系人", "发现", "我的"};
for (String title : titles) {
fragments.add(PageFragment.newInstance(title));
}
adapter = new FragmentStatePagerAdapter(getSupportFragmentManager()) {
@Override
public int getCount() {
return fragments.size();
}
@Override
public Fragment getItem(int position) {
return fragments.get(position);
}
};
}
private void initIndicators() {
indicators = new ArrayList<>();
DynamicIconWithText home = findViewById(R.id.indicator_home);
DynamicIconWithText contacts = findViewById(R.id.indicator_contacts);
DynamicIconWithText discover = findViewById(R.id.indicator_discover);
DynamicIconWithText profile = findViewById(R.id.indicator_profile);
indicators.add(home);
indicators.add(contacts);
indicators.add(discover);
indicators.add(profile);
home.setOnClickListener(this);
contacts.setOnClickListener(this);
discover.setOnClickListener(this);
profile.setOnClickListener(this);
home.setHighlightAlpha(1.0f);
}
@Override
public void onPageScrolled(int position, float positionOffset, int positionOffsetPixels) {
if (positionOffset > 0) {
DynamicIconWithText left = indicators.get(position);
DynamicIconWithText right = indicators.get(position + 1);
left.setHighlightAlpha(1 - positionOffset);
right.setHighlightAlpha(positionOffset);
}
}
@Override
public void onPageSelected(int position) {
resetAllIndicators();
indicators.get(position).setHighlightAlpha(1.0f);
}
@Override
public void onPageScrollStateChanged(int state) {}
@Override
public void onClick(View v) {
resetAllIndicators();
switch (v.getId()) {
case R.id.indicator_home:
viewPager.setCurrentItem(0, false);
indicators.get(0).setHighlightAlpha(1.0f);
break;
case R.id.indicator_contacts:
viewPager.setCurrentItem(1, false);
indicators.get(1).setHighlightAlpha(1.0f);
break;
case R.id.indicator_discover:
viewPager.setCurrentItem(2, false);
indicators.get(2).setHighlightAlpha(1.0f);
break;
case R.id.indicator_profile:
viewPager.setCurrentItem(3, false);
indicators.get(3).setHighlightAlpha(1.0f);
break;
}
}
private void resetAllIndicators() {
for (DynamicIconWithText indicator : indicators) {
indicator.setHighlightAlpha(0f);
}
}
}
至此，一个具备滑动切换、动态高亮、点击响应的微信式界面已完整实现。
